Australian summers continue to get hotter and a great way to keep your business cooler in summer is to use solar roof ventilation like the SolarKing commercial solar fan. This unit draws in the cooler outside air and extracts the hot air built up in the factory.
Many factories already have wind driven “commercial whirly birds” installed on roofs. Whirly birds rely on highs winds to produce any benefit and even then, they only move around 300CBM per hour for each unit. Compare this to the SolarKing commercial fan that moves 10,000CBM per hour, there is simply no comparison.
The SolarKing solar exhaust fan uses the sun and only starts working when your factory reaches 25°C so as not to remove warm air in the winter when it is needed to keep the factory warm (whirly birds operate regardless of the temperature). The thermostat can also be bypassed if you want to move air all year round. When the sun disappears in the evening the SolarKing will stop ventilating but at this time the factory is now cooling naturally as there is no sun. This latest V3 model now has DC power connection so you can also add the optional 240V power pack to allow the SolarKing to keep extracting air at night until the roof temperature drops below 25°C.
So if are looking to make a big change to the comfort levels in your factory and looking to reduce the high costs of power using air conditioners, let the free power of the sun to do the work for you. A cooler workplace will also lead to more productivity,

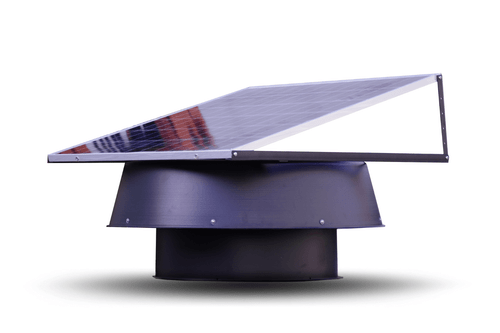

This model comes supplied with a 135W panel mounted on top of the fan making the install as simple as possible. The panel comes with a tilting kit to adjust the panel to the angle of the sun.
Features:
- Increase comfort levels in factory’s
- Reduce air conditioning costs
- Extracts 30x more air than a “Commercial Whirly Bird”
- Perfect for extracting harmful fumes in manufacturing factory’s
- Free airflow design including air deflection cone to allow the unit to extract air more efficiently than other models
- Reduces factory temperatures by up to 30°C
- Solar Powered now with DC power cable to connect to the optional 24V/240V power pack so the fan can still run when the sun goes down
- Thermostatically controlled means no heat loss during winter
- Brushless DC motor for quiet operation and long life
- Corrosion resistant, suitable for coastal regions
- 135W solar panel mounted on top of the fan
- 10,000CBM air movement per hour
- Suits metal roof’s
- Easy installation, no cabling so no electrician required
- Reduces condensation build up in your building
- Designed in Australia for Australian conditions
- SolarKing is Australian owned and operated
Technical Specifications:
- Model: 600MM SRVF V3
- Capacity: 10000CBM Per Hour
- Motor :150 Watts, 24VDC, 1650RPM Max, Brushless motor with double shielded ball bearings
- Solar Panel Type: 135W Monocrystalline PV, Heavy Duty Frame, 3mm Tempered Glass
- Solar Panel Output: 135 Watts, 29VDC
- Fan: 585mm 3 Blade Balanced Aluminium Alloy Low Resistance
- Noise: <60dBA
- Automatic Shut Off: <25°C +/- 5%
- Product Dimensions: 910x910x390mm (Add 90mm for control box below fan)
- Flashing Dimensions: 930x930x1mm
- Product Weight: 16.0Kgs (Including Solar Panel)
- Construction: Aluminium Top Cover, Steel Body, Steel Brackets and Stainless Steel Fasteners
- Colour: Black Powder Coated
- Packing Dimensions: 950x950x460mm
- Packing Weight: 19.5kgs
- Warranty: 3 Year Warranty
Packages:
- 1x SolarKing 600mm Commercial Solar Roof Ventilation Fan V3
- 1x 135W Mono Solar Panel
- 1x Roof Flashing
- 1x Mounting kit
- 1x Instructions
